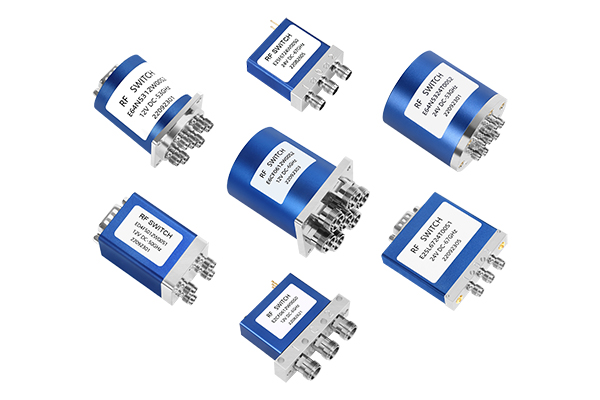

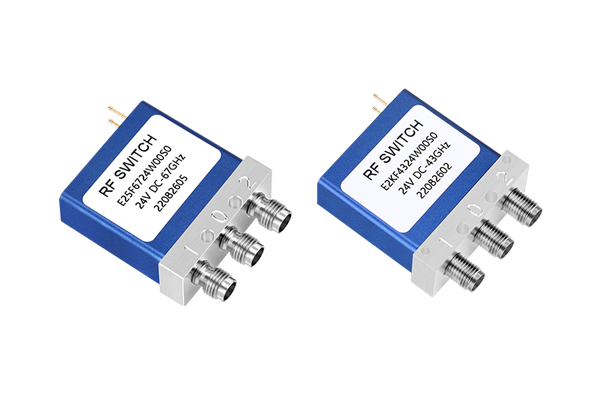

机械开关

● 频率范围宽，最高可达67GHz

● 使用寿命长，传输功率高

● 驻波比低、隔离高、插入损耗小、重复性≤0.05dB

● 品种丰富，包括SPDT、DPDT、SP4T、SP6T、SP10T等

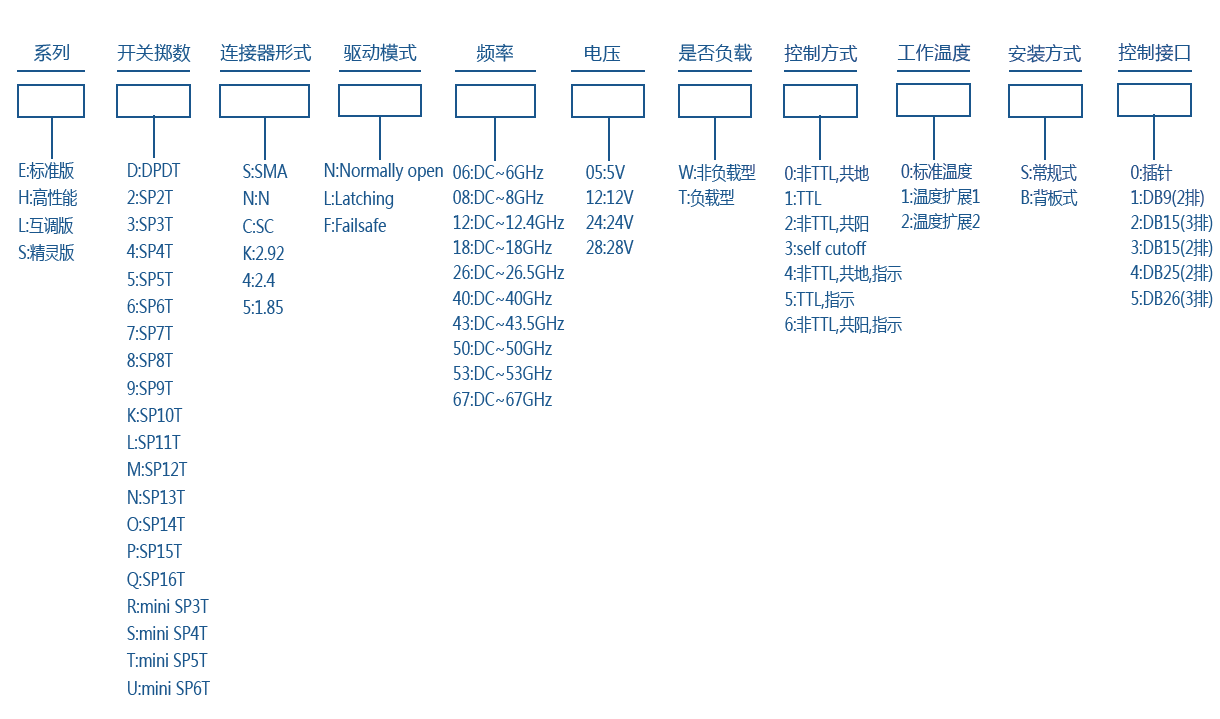

手册目录机械开关选型应用领域

开关类型	开关掷数	频率范围	驱动模式	射频连接器	插入损耗（dB)	隔离（dB）	驻波	规格书
反射型	SPDT	DC-18GHz	Failsafe/Latching	SMA Female	0.4	60	1.4	查看规格书
		DC-26.5GHz	Failsafe/Latching	SMA Female	0.6	55	1.6	查看规格书
		DC-40GHz	Failsafe/Latching	2.92 Female	0.8	50	1.8	查看规格书
		DC-43.5GHz	Failsafe/Latching	2.92 Female	0.8	50	1.8	查看规格书
		DC-50GHz	Failsafe/Latching	1.85 Female	0.9	45	1.9	查看规格书
		DC-53GHz	Failsafe/Latching	1.85 Female	1.0	45	2.0	查看规格书
		DC-67GHz	Failsafe/Latching	1.85 Female	1.2	45	2.2	查看规格书
	SP3T-6T	DC-18GHz	Normally open	SMA Female	0.6	60	1.5	查看规格书
		DC-26.5GHz	Normally open	SMA Female	0.6	55	1.6	查看规格书
		DC-40GHz	Normally open	2.92 Female	0.9	50	1.9	查看规格书
		DC-43.5GHz	Normally open	2.92 Female	1.0	50	2.0	查看规格书
		DC-50GHz	Normally open	1.85 Female	1.2	50	2.2	查看规格书
		DC-53GHz	Normally open	1.85 Female	1.3	50	2.2	查看规格书
	mini SP3T-6T	DC-18GHz	Normally open	SMA Female	0.5	60	1.5	查看规格书
		DC-26.5GHz	Normally open	SMA Female	0.6	55	1.6	查看规格书
		DC-40GHz	Normally open	2.92 Female	0.9	50	1.9	查看规格书
		DC-43.5GHz	Normally open	2.92 Female	1.0	50	2.0	查看规格书
	SP7T-8T	DC-18GHz	Normally open	SMA Female	0.5	55	1.5	查看规格书
		DC-26.5GHz	Normally open	SMA Female	0.7	50	1.7	查看规格书
		DC-40GHz	Normally open	2.92 Female	0.9	50	1.9	查看规格书
	SP9T-10T	DC-18GHz	Normally open	SMA Female	0.5	55	1.5	查看规格书
	SP9T-10T	DC-26.5GHz	Normally open	SMA Female	0.7	50	1.7	查看规格书
	SP11T-12T	DC-18GHz	Normally open	SMA Female	0.6	50	1.6	查看规格书
	DPDT	DC-18GHz	Failsafe/Latching	SMA Female	0.5	55	1.5	查看规格书
		DC-26.5GHz	Failsafe/Latching	SMA Female	0.7	50	1.7	查看规格书
		DC-40GHz	Failsafe/Latching	2.92 Female	0.9	50	1.9	查看规格书
		DC-43.5GHz	Failsafe/Latching	2.92 Female	1.0	50	2.0	查看规格书
		DC-50GHz	Failsafe/Latching	1.85 Female	1.2	50	2.1	查看规格书
		DC-53GHz	Failsafe/Latching	1.85 Female	1.5	50	1.8	查看规格书
吸收型	SPDT	DC-18GHz	Failsafe/Latching	SMA Female	0.5	55	1.5	查看规格书
		DC-26.5GHz	Failsafe/Latching	SMA Female	0.6	50	1.6	查看规格书
		DC-40GHz	Failsafe/Latching	2.92 Female	0.9	50	1.9	查看规格书
		DC-43.5GHz	Failsafe/Latching	2.92 Female	1.0	50	2.0	查看规格书
		DC-50GHz	Failsafe/Latching	1.85 Female	1.1	50	2.1	查看规格书
		DC-53GHz	Failsafe/Latching	1.85 Female	1.2	50	2.2	查看规格书
		DC-67GHz	Failsafe/Latching	1.85 Female	1.2	45	2.2	查看规格书
	SP3T-6T	DC-18GHz	Normally open/Latching	SMA Female	0.5	50	1.5	查看规格书
		DC-26.5GHz	Normally open/Latching	SMA Female	0.6	50	1.6	查看规格书
		DC-40GHz	Normally open/Latching	2.92 Female	0.9	50	1.9	查看规格书
		DC-43.5GHz	Normally open/Latching	2.92 Female	1.0	50	2.0	查看规格书
		DC-50GHz	Normally open/Latching	1.85 Female	1.1	50	2.1	查看规格书
		DC-53GHz	Normally open/Latching	1.85 Female	1.2	50	2.2	查看规格书
	SP7T-8T	DC-18GHz	Normally open/Latching	SMA Female	0.5	50	1.5	查看规格书
		DC-26.5GHz	Normally open/Latching	SMA Female	0.6	50	1.6	查看规格书
		DC-40GHz	Normally open/Latching	2.92 Female	0.9	50	1.9	查看规格书
	SP9T-10T	DC-18GHz	Normally open/Latching	SMA Female	0.5	50	1.5	查看规格书
	SP9T-10T	DC-26.5GHz	Normally open/Latching	SMA Female	0.7	50	1.7	查看规格书
	SP11T-12T	DC-18GHz	Normally open/Latching	SMA Female	0.6	50	1.6	查看规格书
大功率型	SPDT	DC-12.4GHz	Failsafe/Latching	N Female	0.5	60	1.5	查看规格书
	SPDT	DC-18GHz	Failsafe/Latching	N Female	0.7	50	1.7	查看规格书
	SP3T-6T	DC-12.4GHz	Failsafe/Normally open	N Female	0.5	60	1.5	查看规格书
	SP7T-8T	DC-8GHz	Normally open	N Female	0.5	60	1.5	查看规格书
	SP9T-10T	DC-6GHz	Normally open	N Female	0.3	70	1.3	查看规格书
	DPDT	DC-12.4GHz	Failsafe/Latching	N Female	0.5	60	1.5	查看规格书
	SPDT	DC-6GHz	Failsafe/Latching	SC Female	0.3	70	1.3	查看规格书
	SP3T-6T	DC-6GHz	Normally open	SC Female	0.3	70	1.3	查看规格书
表贴式	SPDT	DC-18GHz	Failsafe	φ0.45mm	0.7	40	1.7	查看规格书
USB型	SP3T-6T	DC-53GHz	Normally open	SMA/2.92/1.85 Female	1.3	50	2.2	查看规格书
USB型	SP7T -8T	DC~40GHz	Normally open	SMA/2.92 Female	0.9	50	1.9	查看规格书
小型化开关矩阵	多个开关组合	DC~67GHz	多种模式	多种接口类型	—	—	—	查看规格书
